Product Description

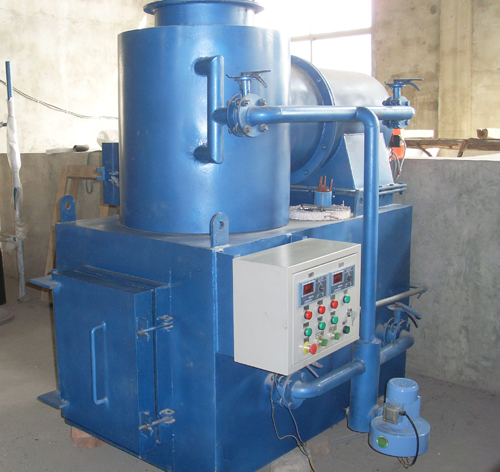

Medical Waste Incinerator YD Model is our classic product for market. All series included burning capacity 10kgs per hour, 30kgs per hour,50kgs per hour,100kgs per hour,150kgs per hour,300kgs per hour,500kgs per hour. Up to now, all models sale to all over the world and have good feedback from end-customer. The YD Model medical incinerator have multi-combustion chamber and basic dry scrubber (smoke filter chamber) with reasonable project budget. For the cleaner emission require, we accept custom made wet scrubber for incinerator and this will be also our next working by focusing on emission technical.
Model | YD-30 | |||
Burning Rate | 30 kgs/hour | |||
Feed Capacity | 60 kgs | |||
Paimary Combustion Chamber | 360 Liters | |||
Secondary Combustion Chamber | 200 Liters | |||
Mix Combustion Chamber | Yes | |||
Smoke Filter Chamber | Yes | |||
Feed Mode | Manual | |||
Voltage | 220V | |||
Power | 0.59Kw | |||
Fuel Type | Diesel Oil/ Natural Gas/LPG | |||
Burner | Italy Original | |||
Oil Consumption (Diesel Oil) | 10.2–19.8 kg/hour | |||
Gas Consumption (Natural Gas) | 9.8–20 m3/hour | |||
Internal Dimensions | 100 x 60 x 60cm (paimary chamber) | |||
External Dimensions | 145 x 90 x 260cm (without chimney) | |||
Temperature Monitor | Yes | |||
Oil Tank Capacity(if oil fuel) | 200 Liters | |||
Door Opening | 48 x 60cm | |||
Chimney Length | 5.0 Meters | |||
Chimney Type | Stainless Steel | |||
Equipment Gross Weight | 2300 kgs | |||
Operation Technical Specifications | ||||
Paimary Chamber Temperature | 800℃–1000℃ | |||
Secondary Chamber Temperature | 1000℃-1200℃ | |||
Residency Time | 2.0 Sec. | |||
Burning Efficiency | >98% | |||
Waste Lower Calorific Power | 3000Kcal |
