Product Description
Nanjing Clover Medical Technology Co., Ltd. is a leading waste incinerator manufacturer in China. We are local manufacturer and one of the largest exporter of China. Pyrolytic incinerator equipment technical is main waste treatment all of the world, for Medical waste, Pet animal cremation and other Solid waste. The capacity from 10kgs/Hr. to 600kgs/Hr., up to 10ton per day.

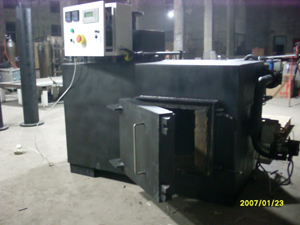

Items/Model | TS30(PLC) |
Burn Rate | 30 kg/hour |
Feed Capacity | 60kg |
Control Mode | PLC |
Combustion Chamber | 330L |
Internal Dimensions | 75x75x60cm |
Secondary Chamber | 180L |
Smoke Filter Chamber | Yes |
Feed Mode | Manual |
Voltage | 220V |
Power | 0.5Kw |
Oil Consumption (kg/hour) | 10.2–20 |
Gas Consumption (m3/hour) | 9.8–20 |
Temperature Monitor | Yes |
Temperature Protection | Yes |
Oil Tank | 100L |
Feed Door | 55x50cm |
Chimney | 5Meter |
Chimney Type | Stainless Steel |
1st. Chamber Temperature | 800℃–1000℃ |
2nd. Chamber Temperature | 1000℃-1200℃ |
Residency Time | 2.0 Sec. |
Gross Weight | 3000kg |
External Dimensions | 175x120x140cm |
